With the Drive2 you don’t have to choose between luxury and reliability. Over 60 years of precision engineering and technological innovations have come together in our most beautiful and luxurious personal transportation line to date.

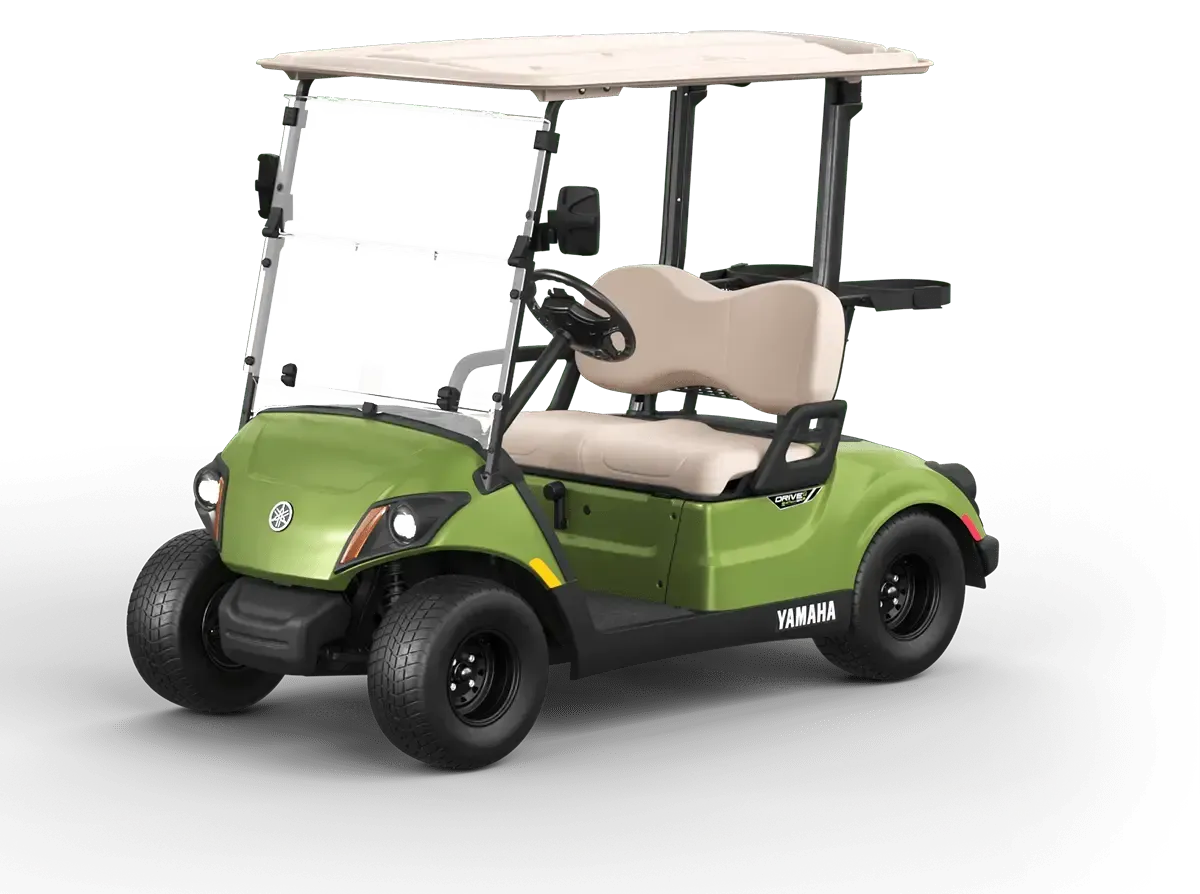

PERIDOT

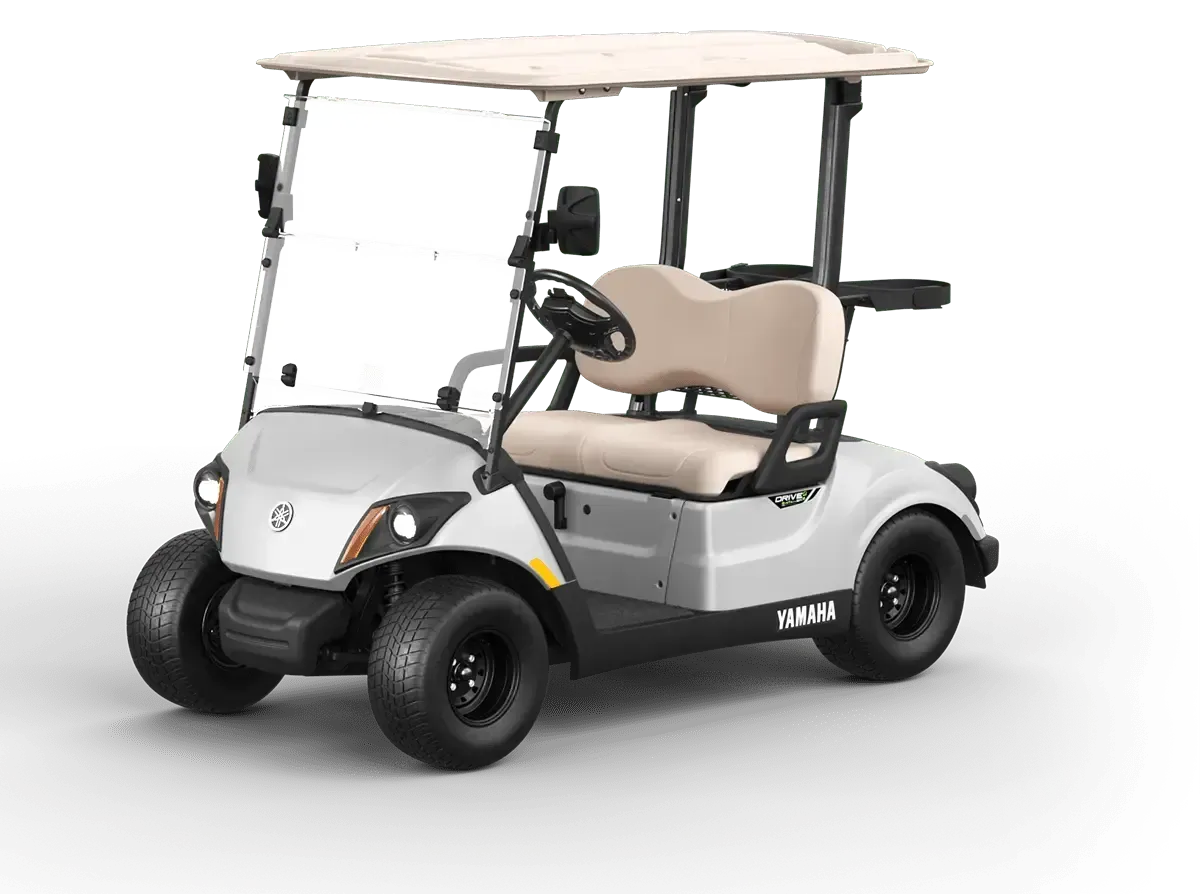

PEARL
CARBON

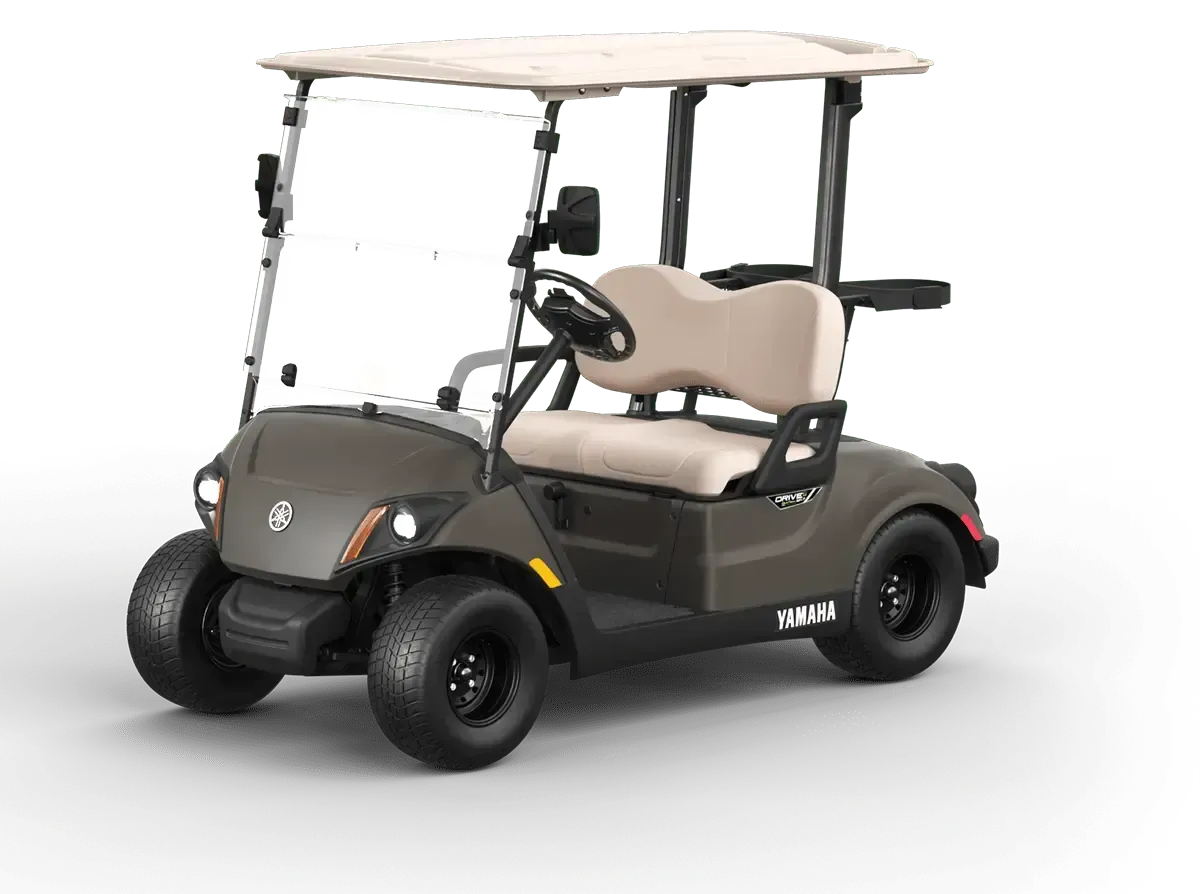

TITAN

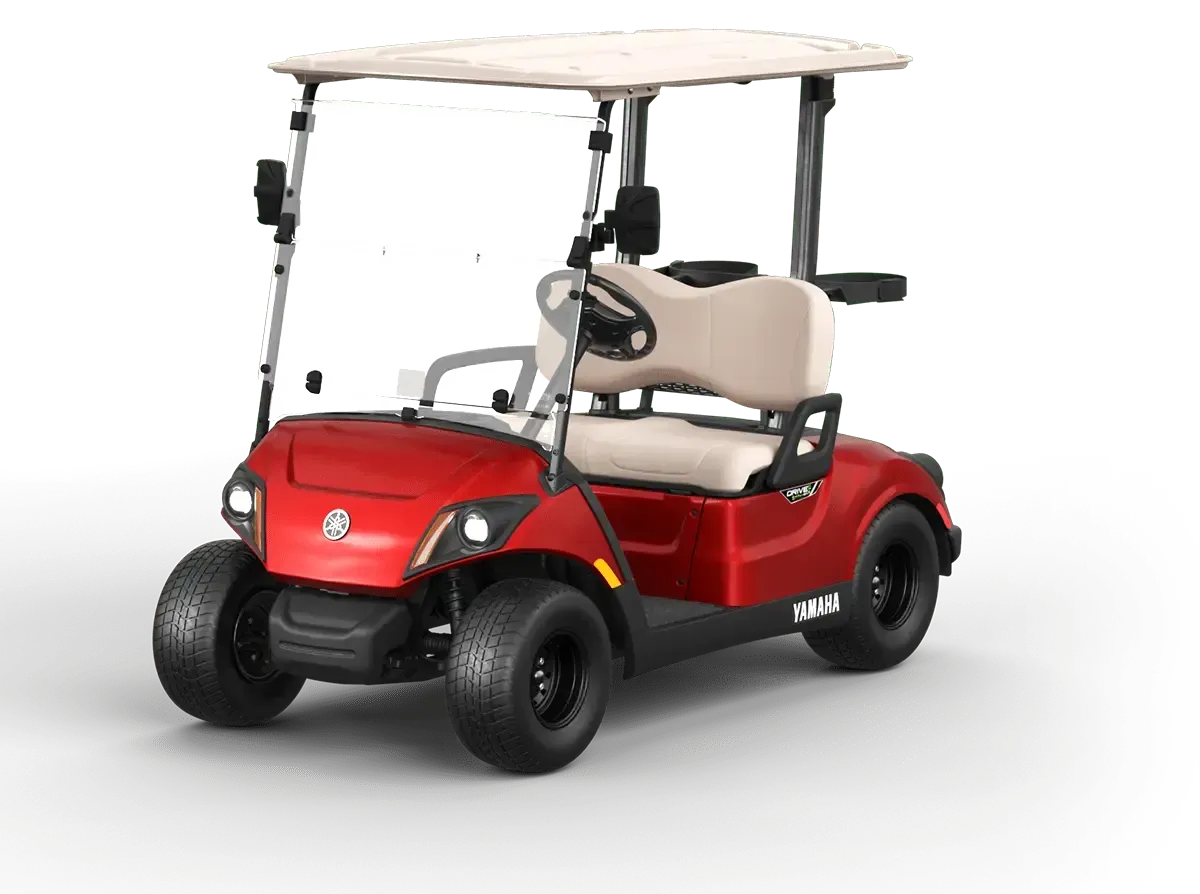

CORAL RED
GLACIER

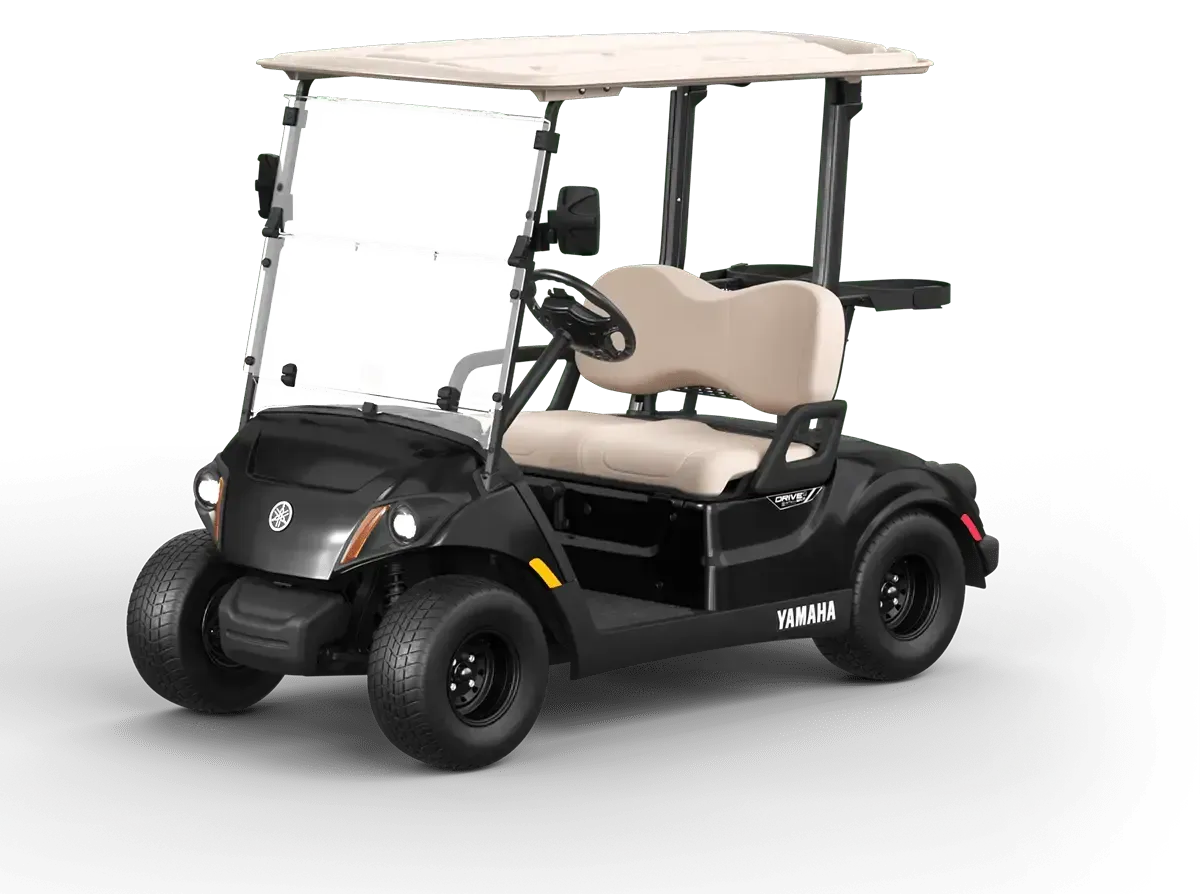

ONYX

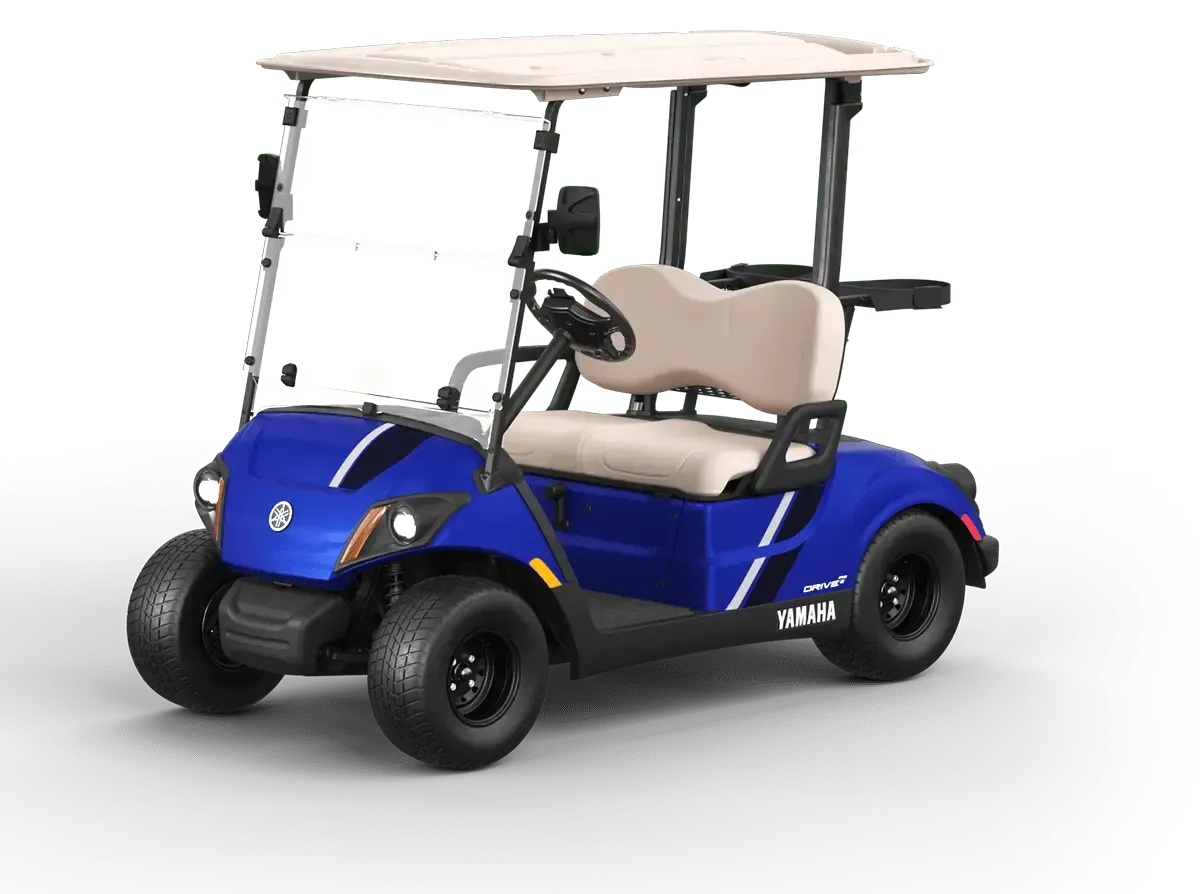

RACING BLUE
PERIDOT
Dimensions
OVERALL LENGTH
93.6 in (238 cm)
OVERALL WIDTH
47.3 in (120 cm)
OVERALL HEIGHT
(with suntop) 71.5 in (182 cm)
WHEELBASE
64.4 in (164 cm)
FRONT WHEEL TREAD
35 in (89 cm)
REAR WHEEL TREAD
38.7 in (98 cm)
MINIMUM GROUND CLEARANCE
5.5 in (14 cm)
FLOOR BOARD HEIGHT
12.9 in (33 cm)
Performance
MAXIMUM FORWARD SPEED
19 MPH
HILL CLIMBING CAPACITY
20°
MINIMUM TURNING RADIUS
9.5 ft (2.9 m)
Chassis
FRAME
HybriCore™ Chassis features a robotic welded automotive ladder-style steel frame protected with a multi-step full-immersion phosphate treatment, electrodeposition epoxy-based coating, and an electrostatic applied polyester/urethane powder topcoat.
BODY
Mold-in Polypropylene for Glacier color. Custom-formulated thermoplastic olefin painted with a two-part top coat of high-luster automotive-grade polyurethane.
STEERING
Self-compensating double reduction helical rack-and-pinion.
FRONT WHEEL SUSPENSION
Tru-Trak II™ fully independent automotive-style strut suspension.
REAR WHEEL SUSPENSION
QuieTech EFI: Fully independent automotive-style strut suspension. PowerTech AC: Swing arm with coil springs over hydraulic shock absorbers.
BRAKES
Self-adjusting mechanical, rear wheel drum brakes.
BUMPERS
Front and rear 5 mph energy-absorbing bumpers.
General
FUEL TANK CAPACITY (GAS)
5.8 U.S. gal (22 liters)
TIRE SIZE
205/65-10 DOT (4 ply rating)
SEATING CAPACITY
2 persons
AVAILABLE MODEL COLORS
Standard: Glacier Metallic: Bluestone, Rich Brown, Moonstone, Sandstone, Onyx, Aqua Blue, Jasper
AVAILABLE SEAT COLOR
Standard: Stone Optional: Black
AVAILABLE SUNTOP COLOR
Standard: Stone Optional: Black
Warranty
Standard 4-year limited vehicle warranty.
